album:Autumn 2025

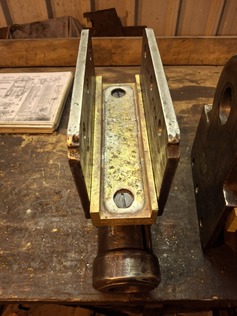

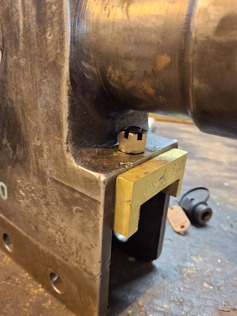

Cross head top slipper

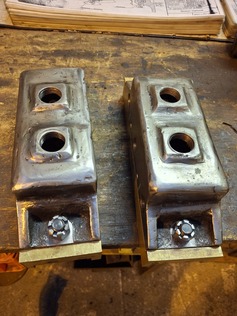

Cross head bottom slippers ready to machine the white metal at the next working party
Cross head bottom slippers ready to machine the white metal at the next working party
cross head top slippers

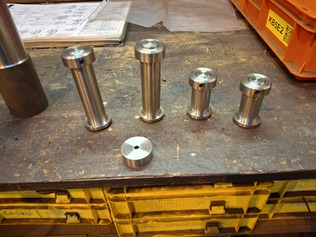

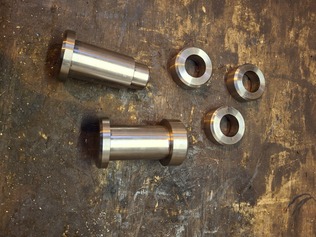

More pins made by Dave.

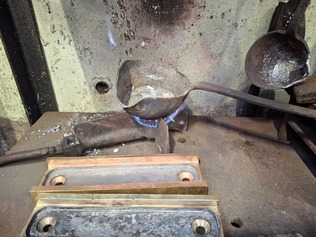

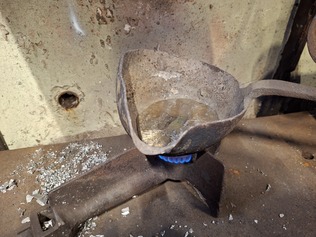

Melting the white metal

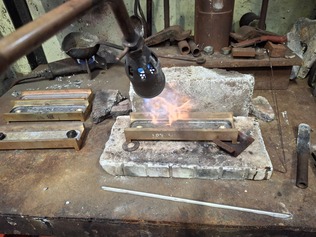

Heating the cross head slippers ready for pouring whitemetal.

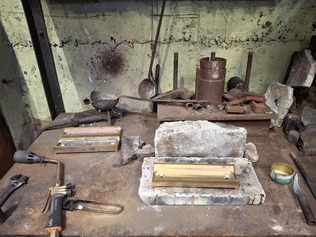

The whitemetalling bay.
Freshly poured whitemetal.

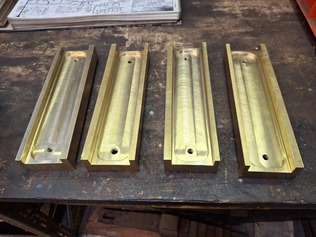

All 4 cross head slippers with recesses for the white metal.
Dave making pins for the reverser linkage
Finally - It's amazing what comes out of a double engine chimney at times!

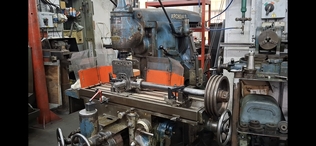

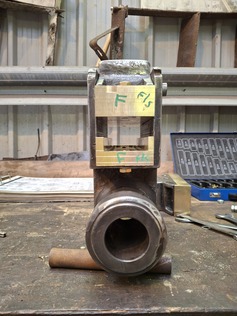

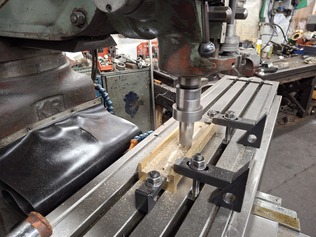

Machining one of the top cross head slippers.

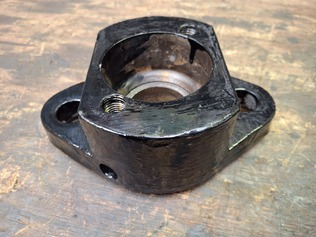

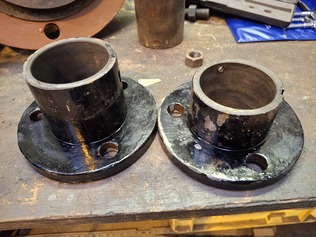

Difference between the drivers and fireman side glands

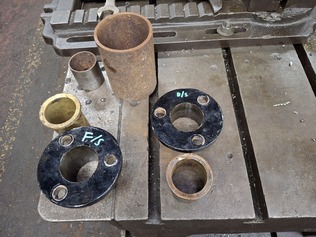

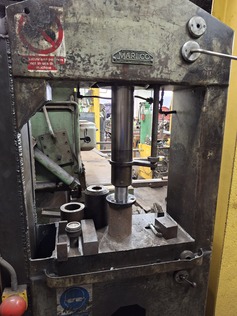

Disassembling the glands using the press
Disassembling the glands using the press

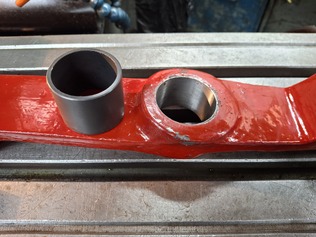

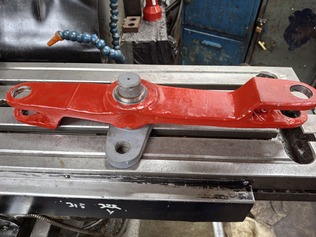

Reverser intermediate crank with new pivot bush.
Reverser intermediate crank with new pivot bush.

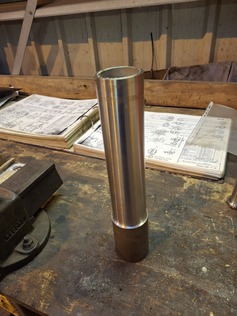

Length of tube for measuring the lifting the relative positions of the motion pivot points.
